cola::FixedRelativeConstraint Class Reference

A fixed-relative constraint specifies that a group of nodes are constrained to be fixed in position relative to each other. More...

#include <compound_constraints.h>

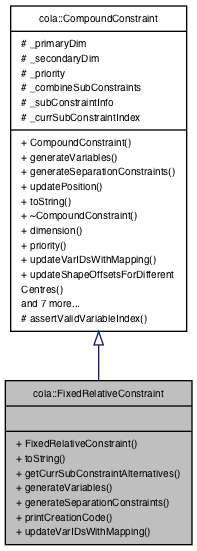

Inheritance diagram for cola::FixedRelativeConstraint:

Collaboration diagram for cola::FixedRelativeConstraint:

Public Member Functions
	FixedRelativeConstraint (const vpsc::Rectangles &rs, std::vector< unsigned > shapeIds, const bool fixedPosition=false)
	Constructs a new FixedRelativeConstraint between a set of nodes, optionally with a fixed position. More...
std::string	toString (void) const
	Returns a textual description of the compound constraint. More...
void	generateVariables (const vpsc::Dim dim, vpsc::Variables &vars)
	Implemented by the compound constraint to generate any additional required variables in the given dimension. More...
void	generateSeparationConstraints (const vpsc::Dim dim, vpsc::Variables &vars, vpsc::Constraints &gcs, vpsc::Rectangles &bbs)
	Implemented by the compound constraint to generate the low-level separation constraints in the given dimension. More...
Public Member Functions inherited from cola::CompoundConstraint
virtual void	updatePosition (const vpsc::Dim dim)
	Implemented by the compound constraint to send position information back to the interface. More...

Detailed Description

A fixed-relative constraint specifies that a group of nodes are constrained to be fixed in position relative to each other.

These nodes are fixed relative to each other in both the x- and y-dimensions but still free to move as a group.

Optionally, this compound constraint can be marked as desiring a fixed position. If this is specified, the group of nodes will attempt to stay close to its current position.

Constructor & Destructor Documentation

FixedRelativeConstraint()

cola::FixedRelativeConstraint::FixedRelativeConstraint	(	const vpsc::Rectangles &	rs,
		std::vector< unsigned >	shapeIds,
		const bool	fixedPosition = false
	)

Constructs a new FixedRelativeConstraint between a set of nodes, optionally with a fixed position.

Parameters

[in]	rs	The list of bounding boxes for the rectangles for all nodes in the current problem.
[in]	shapeIds	A vector of indices into the rc vector for the nodes that will be fixed relative to each other.
[in]	fixedPosition	Whether of not the nodes should ideally be fixed to the current position. The default is not fixed.

Member Function Documentation

generateSeparationConstraints()

void cola::FixedRelativeConstraint::generateSeparationConstraints ( const vpsc::Dim  dim, vpsc::Variables &  var, vpsc::Constraints &  cs, vpsc::Rectangles &  bbs  )

virtual

Implemented by the compound constraint to generate the low-level separation constraints in the given dimension.

These constraints will be added to the list of constraints cs.

Parameters

[in]	dim	The current active dimension.
[in]	vars	The list of variables for the overall problem instance.
[in,out]	cs	The list of constraints to which the generated constraints will be added.
[in]	bbs	The list of bounding boxes for all rectangles in the current problem. It has the same order as vars.

Implements cola::CompoundConstraint.

generateVariables()

void cola::FixedRelativeConstraint::generateVariables ( const vpsc::Dim  dim, vpsc::Variables &  vars  )

virtual

Implemented by the compound constraint to generate any additional required variables in the given dimension.

Generate any additional variables required by this compound constraint when operating in the given dimension dim and add them to vars. These variables should be cleaned up by the caller after the VPSC problem is solved.

The variables' ideal position and weight should be set by the compound constraint and they should be added to the end of vars.

Parameters

[in]	dim	The current active dimension.
[in,out]	vars	The list of variables for the overall problem instance to which any variables generated should be appended.

Implements cola::CompoundConstraint.

toString()

std::string cola::FixedRelativeConstraint::toString ( void  ) const

virtual

Returns a textual description of the compound constraint.

Returns

A string describing the compound constraint.

Implements cola::CompoundConstraint.

---

The documentation for this class was generated from the following files:

• libcola/compound_constraints.h
• libcola/compound_constraints.cpp
