vpsc::Constraint Class Reference

A constraint determines a minimum or exact spacing required between two Variable objects. More...

#include <constraint.h>

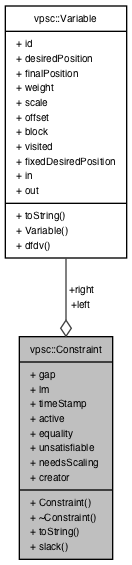

Collaboration diagram for vpsc::Constraint:

Public Member Functions
	Constraint (Variable *left, Variable *right, double gap, bool equality=false)
	Constructs a minimum or exact spacing constraint between two Variable objects. More...
std::string	toString (void) const
	Returns a textual description of the constraint. More...

Public Attributes
Variable *	left
	The left Variable.
Variable *	right
	The right Variable.
double	gap
	The minimum or exact distance to separate the variables by.
const bool	equality
	Whether the separation is an exact distance or not.
bool	unsatisfiable
	Denote whether this constraint was unsatisifable (once the VPSC instance has been solved or satisfied).

Detailed Description

A constraint determines a minimum or exact spacing required between two Variable objects.

Constructor & Destructor Documentation

Constraint()

vpsc::Constraint::Constraint	(	Variable *	left,
		Variable *	right,
		double	gap,
		bool	equality = false
	)

Constructs a minimum or exact spacing constraint between two Variable objects.

(left + gap < right) or (left + gap == right)

Parameters

[in]	left	The left Variable.
[in]	right	The right Variable.
[in]	gap	The minimum or exact distance to separate the variables by.
[in]	equality	Whether the separation is an exact distance or not. The default is false.

Member Function Documentation

toString()

std::string vpsc::Constraint::toString ( void  ) const

inline

Returns a textual description of the constraint.

Returns

A string describing the constraint.

References equality, gap, left, and right.

---

The documentation for this class was generated from the following files:

• libvpsc/constraint.h
• libvpsc/constraint.cpp
