Avoid::PolygonInterface Class Reference

A common interface used by the Polygon classes. More...

#include <geomtypes.h>

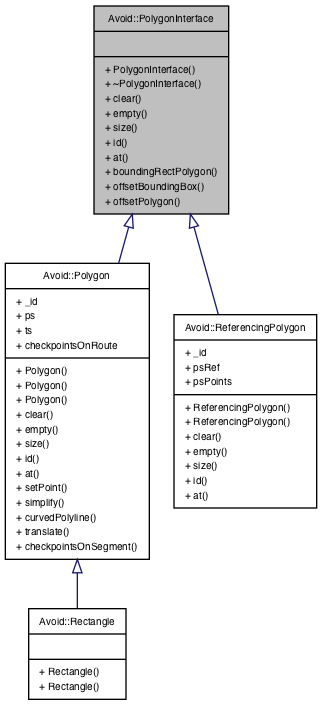

Inheritance diagram for Avoid::PolygonInterface:

Collaboration diagram for Avoid::PolygonInterface:

Public Member Functions
	PolygonInterface ()
	Constructor.
virtual	~PolygonInterface ()
	Destructor.
virtual void	clear (void)=0
	Resets this to the empty polygon.
virtual bool	empty (void) const =0
	Returns true if this polygon is empty.
virtual size_t	size (void) const =0
	Returns the number of points in this polygon.
virtual int	id (void) const =0
	Returns the ID value associated with this polygon.
virtual const Point &	at (size_t index) const =0
	Returns a specific point in the polygon. More...
Polygon	boundingRectPolygon (void) const
	Returns the bounding rectangle for this polygon. More...
Box	offsetBoundingBox (double offset) const
	Returns the bounding rectangle that contains this polygon with optionally some buffer space around it for routing. More...

Detailed Description

A common interface used by the Polygon classes.

Member Function Documentation

at()

virtual const Point& Avoid::PolygonInterface::at ( size_t  index ) const

pure virtual

Returns a specific point in the polygon.

Parameters

[in]

index

The array index of the point to be returned.

Implemented in Avoid::ReferencingPolygon, and Avoid::Polygon.

Referenced by offsetBoundingBox(), and Avoid::Polygon::Polygon().

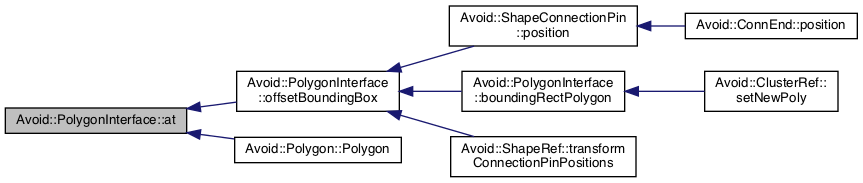

Here is the caller graph for this function:

boundingRectPolygon()

Polygon Avoid::PolygonInterface::boundingRectPolygon

(

void

)

const

Returns the bounding rectangle for this polygon.

Returns

A new Rectangle representing the bounding box.

References Avoid::Box::max, Avoid::Box::min, and offsetBoundingBox().

Referenced by Avoid::ClusterRef::setNewPoly().

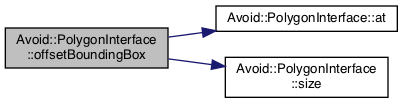

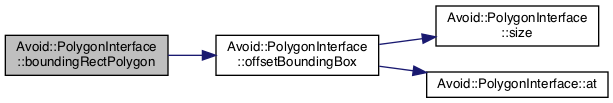

Here is the call graph for this function:

Here is the caller graph for this function:

offsetBoundingBox()

Box Avoid::PolygonInterface::offsetBoundingBox

(

double

offset

)

const

Returns the bounding rectangle that contains this polygon with optionally some buffer space around it for routing.

If a buffer distance of zero is given, then this method returns the bounding rectangle for the shape's polygon.

Parameters

offset

Extra distance to pad each side of the rect.

Returns

The bounding box for the polygon.

References at(), Avoid::Box::max, Avoid::Box::min, size(), Avoid::Point::x, and Avoid::Point::y.

Referenced by boundingRectPolygon(), Avoid::ShapeConnectionPin::position(), and Avoid::ShapeRef::transformConnectionPinPositions().

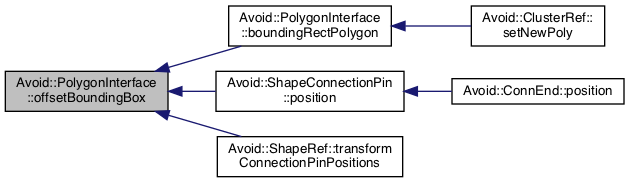

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• libavoid/geomtypes.h
• libavoid/geomtypes.cpp
