Avoid::Rectangle Class Reference

A Rectangle, a simpler way to define the polygon for square or rectangular shapes. More...

#include <geomtypes.h>

Inheritance diagram for Avoid::Rectangle:

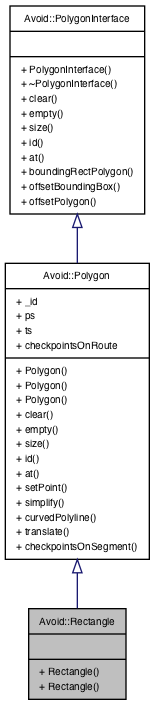

Collaboration diagram for Avoid::Rectangle:

Public Member Functions
	Rectangle (const Point &topLeft, const Point &bottomRight)
	Constructs a rectangular polygon given two opposing corner points. More...
	Rectangle (const Point &centre, const double width, const double height)
	Constructs a rectangular polygon given the centre, width and height. More...
Public Member Functions inherited from Avoid::Polygon
	Polygon ()
	Constructs an empty polygon (with zero points).
	Polygon (const int n)
	Constructs a new polygon with n points. More...
	Polygon (const PolygonInterface &poly)
	Constructs a new polygon from an existing Polygon. More...
void	clear (void)
	Resets this to the empty polygon.
bool	empty (void) const
	Returns true if this polygon is empty.
size_t	size (void) const
	Returns the number of points in this polygon.
int	id (void) const
	Returns the ID value associated with this polygon.
const Point &	at (size_t index) const
	Returns a specific point in the polygon. More...
void	setPoint (size_t index, const Point &point)
	Sets a position for a particular point in the polygon.. More...
Polygon	simplify (void) const
	Returns a simplified Polyline, where all collinear line segments have been collapsed down into single line segments. More...
Polygon	curvedPolyline (const double curve_amount, const bool closed=false) const
	Returns a curved approximation of this multi-segment PolyLine, with the corners replaced by smooth Bezier curves. More...
void	translate (const double xDist, const double yDist)
	Translates the polygon position by a relative amount. More...
Public Member Functions inherited from Avoid::PolygonInterface
	PolygonInterface ()
	Constructor.
virtual	~PolygonInterface ()
	Destructor.
Polygon	boundingRectPolygon (void) const
	Returns the bounding rectangle for this polygon. More...
Box	offsetBoundingBox (double offset) const
	Returns the bounding rectangle that contains this polygon with optionally some buffer space around it for routing. More...

Additional Inherited Members
Public Attributes inherited from Avoid::Polygon
int	_id
	An ID for the polygon.
std::vector< Point >	ps
	A vector of the points that make up the Polygon.
std::vector< char >	ts
	If used, denotes whether the corresponding point in ps is a move-to operation or a Bezier curve-to. More...

Detailed Description

A Rectangle, a simpler way to define the polygon for square or rectangular shapes.

Constructor & Destructor Documentation

Rectangle() [1/2]

Avoid::Rectangle::Rectangle	(	const Point &	topLeft,
		const Point &	bottomRight
	)

Constructs a rectangular polygon given two opposing corner points.

Parameters

[in]	topLeft	The first corner point of the rectangle.
[in]	bottomRight	The opposing corner point of the rectangle.

References Avoid::Polygon::ps, Avoid::Point::x, and Avoid::Point::y.

Rectangle() [2/2]

Avoid::Rectangle::Rectangle	(	const Point &	centre,
		const double	width,
		const double	height
	)

Constructs a rectangular polygon given the centre, width and height.

Parameters

[in]	centre	The centre of the rectangle, specified as a point.
[in]	width	The width of the rectangle.
[in]	height	The height of the rectangle.

References Avoid::Polygon::ps, Avoid::Point::x, and Avoid::Point::y.

---

The documentation for this class was generated from the following files:

• libavoid/geomtypes.h
• libavoid/geomtypes.cpp
