#include <treeplacement.h>

Inherits enable_shared_from_this< TreePlacement >.

Collaboration diagram for dialect::TreePlacement:

Public Member Functions
CompassDir	getPlacementDir (void) const
	Get the placement direction.

CardinalDir	getGrowthDir (void) const
	Get the growth direction.

bool	isExternal (void) const
	Check whether the placement is into the external face.

id_type	id (void) const
	Get the unique ID of this instance.

size_t	getNumPotentialNbrs (void)
	Check the number of "potential neighbours" of this tree, if placed according to this placement. This is equal to the number of other root nodes on the relevant Sides to which the root node of this placement belongs.

double	estimateCost (void)
	Estimate the cost of this placement.

Node_SP	getRootNode (void) const
	Get the Node at which the Tree would be rooted:

Face &	getFace (void)
	Access the Face to which this placement belongs.

void	insertTreeNode (double padding=0)
	Insert a node representing the Tree into the Face to which this placement belongs. More...

std::string	toString (void) const
	Get a string representation.

Node_SP	buildTreeBox (double padding=0) const
	Determine the size of the tree minus the root node, and the position relative to the root node. More...

void	recordBoxNode (Node_SP &boxNode)
	Record the Node representing the box for the Tree.

bool	hasBoxNode (void)
	Check whether this TreePlacement has a box node yet.

Node_SP	getBoxNode (void)
	Get the box node.

ProjSeq_SP	buildBestProjSeq (double padding=0, bool doCostlierDimensionFirst=false, ExpansionEstimateMethod expansionMethod=ExpansionEstimateMethod::CONSTRAINTS)
	Build the best projection sequence for this tree placement. More...

bool	somePointOppositeSegment (LineSegment &seg, Avoid::Point &pt, double padding=-1, bool openInterval=false)
	Compute some point belonging to the tree box and lying opposite a given line segment. More...

void	applyGeometryToTree (void)
	Rotate, flip, and translate the tree as necessary to match this placement.

void	insertTreeIntoGraph (Graph &G, NodesById &treeNodes, NodesById &bufferNodes, EdgesById &treeEdges)
	Insert the tree into a given Graph. More...

size_t	size (void) const
	Check the size (i.e. number of nodes in) the Tree.

void	setRootAligns (vpsc::Dim dim, std::set< id_type > &idSet)
	Tell the TreePlacement which Nodes are aligned with its root node in a given dimension. More...

bool	rootIsAlignedWith (vpsc::Dim dim, id_type id)
	Check whether the root node is aligned with a given node, in a given dimension. More...

Detailed Description

A TreePlacement represents a way of placing a tree into the faces of a 4-planar, orthogonal layout.

Member Function Documentation

◆ buildBestProjSeq()

ProjSeq_SP dialect::TreePlacement::buildBestProjSeq	(	double	padding = `0`,
		bool	doCostlierDimensionFirst = `false`,
		ExpansionEstimateMethod	expansionMethod = `ExpansionEstimateMethod::CONSTRAINTS`
	)

inline

Build the best projection sequence for this tree placement.

Parameters

[in]	padding	Optional padding for the new tree box.
[in]	doCostlierDimensionFirst	Set true to do the more expensive dimension first, in hopes that this will obviate expansion in the other dimension altogether.
[in]	estimateMethod	See defn of ExpansionEstimateMethod enum class.

Returns: A ProjSeq representing the computed projection sequence.

◆ buildTreeBox()

Node_SP TreePlacement::buildTreeBox ( double padding = 0 ) const

Determine the size of the tree minus the root node, and the position relative to the root node.

Parameters

[in] padding Optionally, you may request padding be added to the /outside/ sides of the box, i.e. all those except the side facing the root node. For example, for a north-growing tree, the padding will be added only to the north, east, and west sides. Recommended value for padding is one quarter of the Graph's ideal edge length (iel/4.0).

Returns: A Node whose dimensions w x h gives the dimensions of the bounding box of the tree, minus the root node, and whose position (x, y) gives the vector from the centre of the root node to the centre of this box.

Note: The dimensions are in respect of the growth direction of this TreePlacement, and the position vector is in respect of its placement direction and flip bit.

References dialect::Node::allocate(), Avoid::Point::x, and Avoid::Point::y.

Referenced by applyGeometryToTree(), and somePointOppositeSegment().

Here is the call graph for this function:

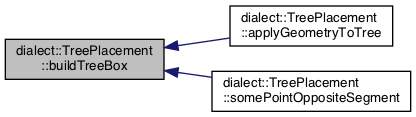

Here is the caller graph for this function:

◆ insertTreeIntoGraph()

void TreePlacement::insertTreeIntoGraph	(	Graph &	G,
		NodesById &	treeNodes,
		NodesById &	bufferNodes,
		EdgesById &	treeEdges
	)

Insert the tree into a given Graph.

Parameters

[out]	G	The Graph into which the tree is to be inserted.
[out]	treeNodes	A place to record the tree nodes that are constructred.
[out]	bufferNodes	A place to record the buffer nodes that are constructred.
[out]	treeEdges	A place to record the tree edges that are added.

References dialect::Graph::hasNode(), and dialect::Graph::severAndRemoveNode().

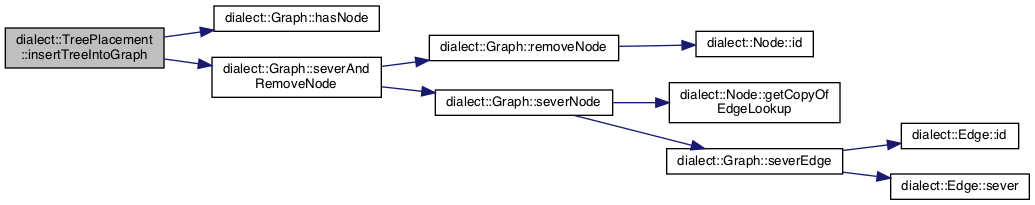

Here is the call graph for this function:

◆ insertTreeNode()

void dialect::TreePlacement::insertTreeNode ( double padding = 0 )

inline

Insert a node representing the Tree into the Face to which this placement belongs.

Parameters

[in] padding Optional padding to be added to the tree box.

See also: TreePlacement::getTreeBox for interpretation of the padding.

References dialect::Face::insertTreeNode().

Here is the call graph for this function:

◆ rootIsAlignedWith()

bool TreePlacement::rootIsAlignedWith	(	vpsc::Dim	dim,
		id_type	id
	)

Check whether the root node is aligned with a given node, in a given dimension.

Parameters

[in]	dim	The dimension of interest.
[in]	id	The ID of the node in question.

◆ setRootAligns()

void dialect::TreePlacement::setRootAligns	(	vpsc::Dim	dim,
		std::set< id_type > &	idSet
	)

inline

Tell the TreePlacement which Nodes are aligned with its root node in a given dimension.

Parameters

[in]	dim	The alignment dimension.
[in]	idSet	The set of IDs of nodes that are aligned in this dimension with the root node.

◆ somePointOppositeSegment()

bool TreePlacement::somePointOppositeSegment	(	LineSegment &	seg,
		Avoid::Point &	pt,
		double	padding = `-1`,
		bool	openInterval = `false`
	)

Compute some point belonging to the tree box and lying opposite a given line segment.

Parameters

[in]	seg	The LineSegment in question.
[out]	pt	The point whose coordinates are to be set.
[in]	padding	Padding for the tree box.
[in]	openInterval	Set true if you want to use the open interval of the line segment instead of closed (the default).

Returns: boolean saying whether the tree box indeed lies opposite the given line segment.

Note: We compute the interval I of the tree box in the dimension parallel to the segment. Let J be the interval of the segment – open if the openInterval argument is true; closed otherwise. Let K be the intersection of I and J. If K is empty then we return false. Otherwise we pick a value w in K and return a point having w as one of its coordinates and a centre coordinate of the tree box as the other coordinate.

References buildTreeBox(), dialect::Face::getGraph(), Avoid::Point::x, and Avoid::Point::y.

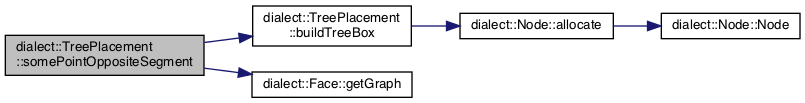

Here is the call graph for this function:

The documentation for this class was generated from the following files:

libdialect/treeplacement.h
libdialect/treeplacement.cpp
