The Graph class represents graphs consisting of nodes and edges. More...

#include <graphs.h>

Collaboration diagram for dialect::Graph:

Public Member Functions
	Graph (void)
	Default constructor.

	Graph (const Graph &G)
	Copy constructor.

	~Graph (void)
	Destructor.

Graph &	operator= (const Graph other)
	Copy-assignment operator. More...

unsigned	getMaxDegree (void) const
	Reports the maximum degree of any Node in this Graph. More...

void	addNode (Node_SP node, bool takeOwnership=true)
	Add a Node to this Graph. More...

Node_SP	addNode (void)
	Add a new Node to this Graph. More...

Node_SP	addNode (double w, double h)
	Add a new Node to this Graph, setting dimensions. More...

Node_SP	addNode (double cx, double cy, double w, double h)
	Add a new Node to this Graph, setting position and dimensions. More...

void	addEdge (Edge_SP edge, bool takeOwnership=true)
	Add an Edge to this Graph. More...

Edge_SP	addEdge (Node_SP src, Node_SP tgt)
	Add a new Edge to this Graph. More...

Edge_SP	addEdge (const id_type &srcID, const id_type &tgtID)
	Add an Edge by specifying the IDs of its endpoint Nodes. More...

bool	hasNode (const id_type &id) const
	Say whether this Graph has a Node of the given ID. More...

bool	hasEdge (const id_type &id) const
	Say whether this Graph has an Edge of the given ID. More...

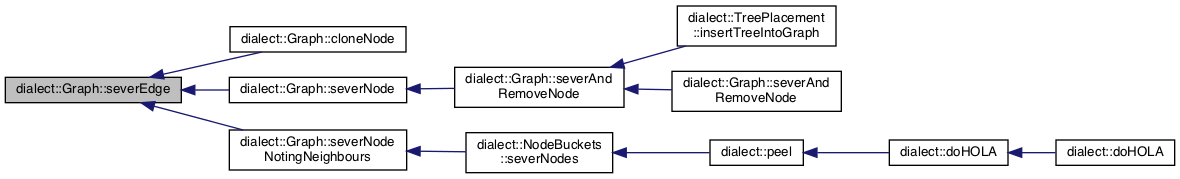

void	severEdge (dialect::Edge &edge)
	Sever an Edge in this Graph. More...

void	severNode (const dialect::Node &node)
	Sever all the Edges incident to a Node in this Graph. More...

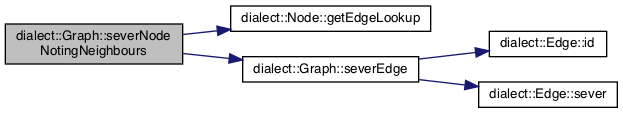

std::vector< Node_SP >	severNodeNotingNeighbours (const dialect::Node &node)
	Like severNode but also returns a vector of all Nodes that were neighbours before severing. More...

void	removeNode (const dialect::Node &node)
	Remove a Node from this Graph. More...

void	removeNodes (const NodesById &nodes)
	Remove several Nodes from this Graph. More...

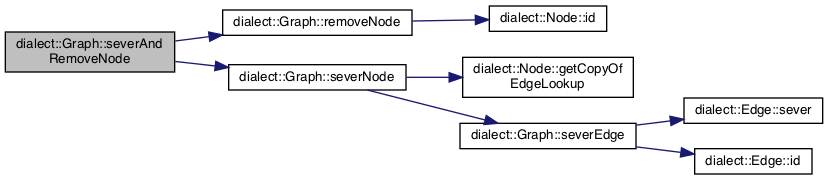

void	severAndRemoveNode (const dialect::Node &node)
	Convenience method to completely remove a Node from the Graph. More...

void	severAndRemoveNode (id_type nodeID)
	Convenience method to completely remove a Node from the Graph. More...

Nodes	cloneNode (id_type id)
	Clone a node completely. There will be as many copies of the original node as it had edges, and each clone will be a leaf. More...

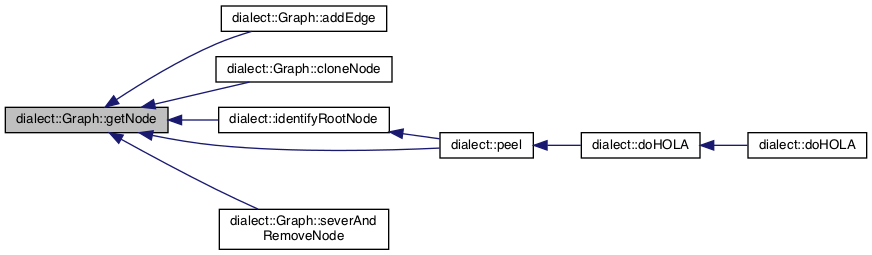

Node_SP	getNode (const id_type &id) const
	Look up a Node by ID. More...

const NodesById &	getNodeLookup (void) const
	Read-only access to this Graph's lookup map for Nodes by their ID.

NodesById	getNodeLookupWithIgnore (const Nodes &ignore) const
	Build a NodesById lookup with some Nodes omitted.

NodesById	getNodeLookupWithIgnore (const NodesById &ignore) const
	Build a NodesById lookup with some Nodes omitted.

const EdgesById &	getEdgeLookup (void) const
	Read-only access to this Graph's lookup map for Edges by their ID.

size_t	getNumNodes (void) const
	Say how many Nodes there are in this Graph.

size_t	getNumEdges (void) const
	Say how many Edges there are in this Graph.

bool	isEmpty (void) const
	Say whether the Graph is empty, meaning that it has no Nodes.

bool	isTree (void) const
	Say whether the Graph is a tree.

double	computeAvgNodeDim (void) const
	Compute the average of all heights and widths of Nodes in this Graph. More...

double	getIEL (void)
	Read the ideal edge length of this Graph. More...

double	recomputeIEL (void)
	Recompute, store, and return the Graph's ideal edge length. More...

BoundingBox	getBoundingBox (const NodesById &ignore=NodesById(), bool includeBends=false) const
	Get the bounding box for this Graph. More...

std::vector< Graph_SP >	getConnComps (void) const
	Get the connected components of this Graph. More...

void	getChainsAndCycles (std::vector< std::deque< Node_SP >> &chains, std::vector< std::deque< Node_SP >> &cycles)
	Identify all sequences of consecutive "links" (degree-2 nodes) in this graph. More...

std::string	writeTglf (bool useExternalIds=false) const
	Write TGLF to represent this Graph. More...

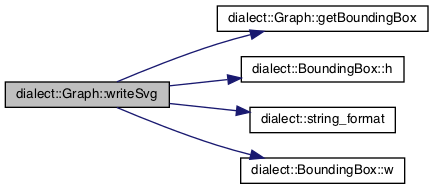

std::string	writeSvg (bool useExternalIds=false) const
	Write SVG to represent this Graph. More...

std::string	writeId2Ix (void) const
	Write the Node ID –> Rectangle Index map. Useful for debugging. More...

std::string	writeIx2Id (void) const
	Write the Rectangle Index –> Node ID map. Useful for debugging. More...

void	rotate90cw (ColaOptions *opts=nullptr)
	Rotate the layout – and the constraints – 90 degrees clockwise. More...

void	rotate90acw (ColaOptions *opts=nullptr)
	Rotate the layout – and the constraints – 90 degrees anticlockwise. More...

void	rotate180 (void)
	Rotate the layout – and the constraints – 180 degrees. More...

void	translate (double dx, double dy)
	Translate the entire layout by a given amount in each dimension. More...

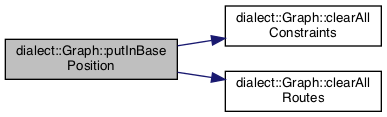

void	putInBasePosition (void)
	Put the Graph into a basic position useful for making unit test inputs. The Nodes are put in a row, all Edge routes are cleared, and all constraints are cleared. More...

bool	hasSameLayoutAs (const Graph &other, double tol=0.001, id_map *idMap=nullptr) const
	Check whether this Graph has the same layout as another, up to a given tolerance. More...

SparseIdMatrix2d< Edge_SP >::type	getEdgeBySrcIdTgtIdLookup (void) const
	Get a lookup for the Edges of this Graph by the IDs of their source and target Nodes, in that order.

void	destress (const ColaOptions &opts)
	Reduce stress via libcola's gradient-descent procedures. More...

void	destress (void)
	Convenience method to destress with default options.

void	solidifyAlignedEdges (vpsc::Dim dim, const ColaOptions &opts)
	Add Nodes to represent aligned Edges in one dimension, constraining them to stay aligned. More...

void	makeFeasible (const ColaOptions &opts)
	Make feasible. This means that, among those constraints that offer alternatives, we look for satisfiable alternatives in order of increasing cost (cost = separation violation). This is useful with nonoverlap constraints. More...

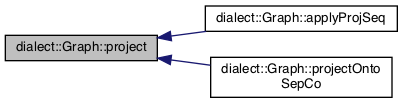

int	project (const ColaOptions &opts, vpsc::Dim dim, int accept=0)
	Project onto cola constraints. More...

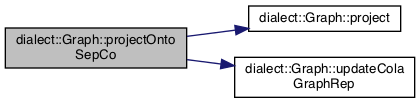

int	projectOntoSepCo (const ColaOptions &opts, SepCo_SP sepco, int accept=0)
	Convenience method to project onto a single SepCo object. Apart from the SepCo, parameters and return value are as for the ordinary project method. More...

bool	applyProjSeq (const ColaOptions &opts, ProjSeq &ps, int accept=0)
	Attempt to apply the projections given by a ProjSeq object. Give up as soon as any of them fails. More...

void	updateNodesFromRects (bool xAxis=true, bool yAxis=true)
	For use with various layout actions, this method asks the Graph to update Node positions based on its internal vpsc Rectangles that were used in the layout operation. More...

ColaGraphRep &	updateColaGraphRep (void)
	Refresh, as needed, the data structures necessary for applying the methods of libcola to this Graph. More...

cola::RootCluster *	buildRootCluster (const ColaOptions &opts)
	Build a cola::RootCluster based on the node clusters specified in a ColaOptions object. More...

ColaGraphRep &	getColaGraphRep (void)
	Access the cola graph rep for this Graph.

SepMatrix &	getSepMatrix (void)
	Access the separation matrix for this Graph.

NodesById	buildUniqueBendPoints (void)
	Build and return Nodes representing every point at which any Edge has a bend in its connector route. Importantly, for any given point in the plane, at most one Node will built to represent that point, even if different edges have a bend there. While perhaps counterintuitive, this is most helpful in the operation of planarising a given Graph. More...

void	pushNodePositions (void)
	Save node positions on internal stack.

bool	popNodePositions (void)
	Restore node positions from internal stack. More...

void	setEdgeThickness (double t)
	Set the edge thickness.

double	getEdgeThickness (void)
	Get the edge thickness.

void	padAllNodes (double dw, double dh)
	Add padding to all ndoes.

void	setPosesInCorrespNodes (Graph &H)
	Update positions of Nodes in a given Graph to equal those of the corresponding Nodes (same ID) in this Graph. More...

void	setRoutesInCorrespEdges (Graph &H, bool directed=false)
	Update routes of Edges in a given Graph to equal those of the corresponding Edges (same source and target) in this Graph. More...

void	route (Avoid::RouterFlag routingType)
	Do a libavoid connector routing on all Edges in the Graph. More...

void	clearAllRoutes (void)
	Clear all Edge routes.

void	buildRoutes (void)
	Ask all Edges to build their routes based on their bend nodes.

void	addBendlessSubnetworkToRoutingAdapter (RoutingAdapter &ra)
	Add all Nodes, and all those Edges having no bend nodes within them, to a given RoutingAdapter. This is useful when precisely those Edges are viewed as needing a route which do not already have any bend nodes. More...

void	clearAllConstraints (void)
	Clear all constraints in this Graph's SepMatrix.

void	setCorrespondingConstraints (Graph &H)
	Set corresponding constraints in another Graph. This means that for each constraint between nodes of IDs id1 and id2 in this Graph's SepMatrix, we set that constraint in the other Graph if and only if it too contains Nodes of IDs id1 and id2. More...

Friends
void	swap (Graph &first, Graph &second)
	Swap operator.

Detailed Description

The Graph class represents graphs consisting of nodes and edges.

Member Function Documentation

◆ addBendlessSubnetworkToRoutingAdapter()

void Graph::addBendlessSubnetworkToRoutingAdapter ( RoutingAdapter & ra )

Add all Nodes, and all those Edges having no bend nodes within them, to a given RoutingAdapter. This is useful when precisely those Edges are viewed as needing a route which do not already have any bend nodes.

Parameters

[out] ra The RoutingAdapter to which the Nodes and Edges are to be added.

References dialect::RoutingAdapter::addEdges(), and dialect::RoutingAdapter::addNodes().

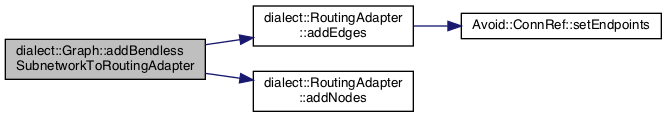

Here is the call graph for this function:

◆ addEdge() [1/3]

void Graph::addEdge	(	Edge_SP	edge,
		bool	takeOwnership = `true`
	)

Add an Edge to this Graph.

Parameters

[in]	edge	The Edge to be added to the Graph.
[in]	takeOwnership	Controls whether the Edge will record this Graph as being the one to which it belongs.

Referenced by addEdge(), and cloneNode().

Here is the caller graph for this function:

◆ addEdge() [2/3]

Edge_SP Graph::addEdge	(	Node_SP	src,
		Node_SP	tgt
	)

Add a new Edge to this Graph.

Parameters

[in,out]	src	The source Node.
[in,out]	tgt	The target Node.

Note: Nodes are also informed of their linkage to this new Edge.

Returns: The new Edge.

References addEdge(), and dialect::Edge::allocate().

Here is the call graph for this function:

◆ addEdge() [3/3]

Edge_SP Graph::addEdge	(	const id_type &	srcID,
		const id_type &	tgtID
	)

Add an Edge by specifying the IDs of its endpoint Nodes.

Parameters

[in]	srcID	The ID of the Node that is to sit at the source end of the new Edge.
[in]	tgtID	The ID of the Node that is to sit at the target end of the new Edge.

Returns: A shared pointer to the new Edge.

References addEdge(), and getNode().

Here is the call graph for this function:

◆ addNode() [1/4]

void Graph::addNode	(	Node_SP	node,
		bool	takeOwnership = `true`
	)

Add a Node to this Graph.

Parameters

[in]	node	The Node to be added to the Graph.
[in]	takeOwnership	Controls whether the Node will record this Graph as being the one to which it belongs.

◆ addNode() [2/4]

Node_SP Graph::addNode ( void )

Add a new Node to this Graph.

Returns: The new Node.

References dialect::Node::allocate().

Referenced by addNode(), and cloneNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addNode() [3/4]

Node_SP Graph::addNode	(	double	w,
		double	h
	)

Add a new Node to this Graph, setting dimensions.

Parameters

[in]	w	Width of Node.
[in]	h	Height of Node.

Returns: The new Node.

References addNode(), and dialect::Node::allocate().

Here is the call graph for this function:

◆ addNode() [4/4]

Node_SP Graph::addNode	(	double	cx,
		double	cy,
		double	w,
		double	h
	)

Add a new Node to this Graph, setting position and dimensions.

Parameters

[in]	cx	Centre x-coordinate of Node.
[in]	cy	Centre y-coordinate of Node.
[in]	w	Width of Node.
[in]	h	Height of Node.

Returns: The new Node.

References addNode(), and dialect::Node::allocate().

Here is the call graph for this function:

◆ applyProjSeq()

bool Graph::applyProjSeq	(	const ColaOptions &	opts,
		ProjSeq &	ps,
		int	accept = `0`
	)

Attempt to apply the projections given by a ProjSeq object. Give up as soon as any of them fails.

Parameters

[in]	opts	Options.
[in]	ps	The ProjSeq to be applied.
[in]	accept	Acceptance level. See doctext for cola::projectOntoCCs.

Note: In addition to the zero idealEdgeLength convention employed by the destress method, here a negative idealEdgeLength in the opts parameter may be used to indicate that you do not want the stress changes induced by the projections to be evaluated. Otherwise they will be.

Returns: boolean, saying whether all the projections were successful, at the given acceptance level.

References dialect::ColaOptions::ccs, getIEL(), dialect::ColaOptions::idealEdgeLength, dialect::ProjSeq::nextProjection(), dialect::ProjSeq::noteStresschange(), project(), and updateColaGraphRep().

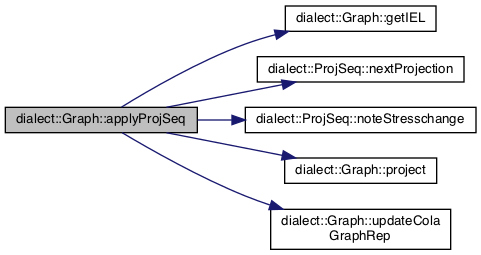

Here is the call graph for this function:

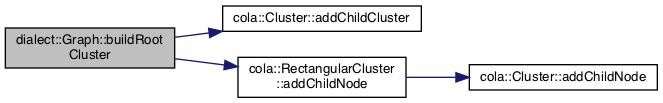

◆ buildRootCluster()

cola::RootCluster * Graph::buildRootCluster ( const ColaOptions & opts )

Build a cola::RootCluster based on the node clusters specified in a ColaOptions object.

Note: The RootCluster will also be stored in the Graph's ColaGraphRep.

Warning: The old RootCluster stored in the Graph's ColaGraphRep (if any) will be deleted.

Returns: The RootCluster.

References cola::Cluster::addChildCluster(), cola::RectangularCluster::addChildNode(), dialect::ColaGraphRep::id2ix, and dialect::ColaOptions::nodeClusters.

Here is the call graph for this function:

◆ buildUniqueBendPoints()

NodesById Graph::buildUniqueBendPoints ( void )

Build and return Nodes representing every point at which any Edge has a bend in its connector route. Importantly, for any given point in the plane, at most one Node will built to represent that point, even if different edges have a bend there. While perhaps counterintuitive, this is most helpful in the operation of planarising a given Graph.

Note: The new Nodes are /not/ added to the Graph.; As an important side effect, the sequence of Nodes representing the bend points of each Edge is set as the "bend nodes" of that Edge.

References dialect::NearbyObjectFinder< T >::addObject(), dialect::Node::allocate(), dialect::NearbyObjectFinder< T >::findObject(), getIEL(), route(), Avoid::Point::x, and Avoid::Point::y.

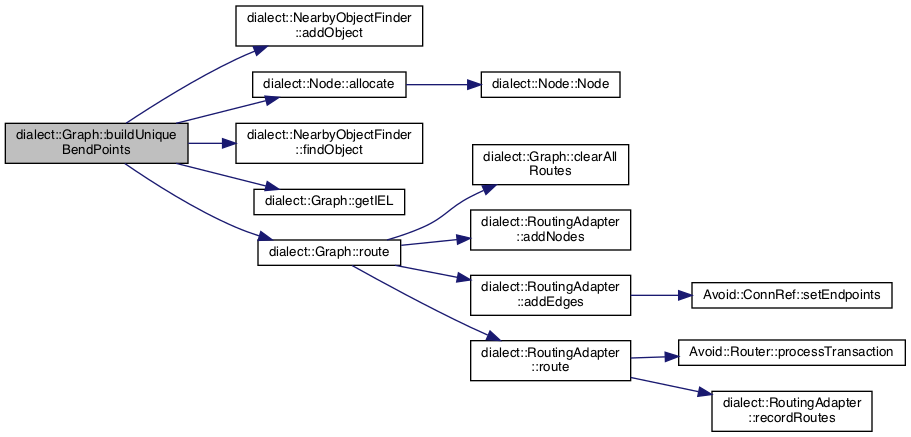

Here is the call graph for this function:

◆ cloneNode()

Nodes Graph::cloneNode ( id_type id )

Clone a node completely. There will be as many copies of the original node as it had edges, and each clone will be a leaf.

Parameters

[in] id The ID of the node to be cloned.

Returns: Vector of new clones added to the graph.

References addEdge(), addNode(), dialect::Node::allocate(), dialect::Edge::allocate(), getNode(), and severEdge().

Here is the call graph for this function:

◆ computeAvgNodeDim()

double Graph::computeAvgNodeDim ( void ) const

Compute the average of all heights and widths of Nodes in this Graph.

Returns: The average.

◆ destress()

void Graph::destress ( const ColaOptions & opts )

Reduce stress via libcola's gradient-descent procedures.

Parameters

[in] opts options to control the layout.

Note: In opts, set the idealEdgeLength to 0 if you want the Graph to automatically supply a reasonable ideal edge length.

References dialect::ColaOptions::logger.

◆ getBoundingBox()

BoundingBox Graph::getBoundingBox	(	const NodesById &	ignore = `NodesById()`,
		bool	includeBends = `false`
	)		const

Get the bounding box for this Graph.

Parameters

[in]	ignore	Optional set of Nodes (as NodesByID) to leave out of the box.
[in]	includeBends	Say whether bend points of connector routes should be included in the box.

Returns: The bounding box.

See also: getBoundingBoxDimensions

Referenced by writeSvg().

Here is the caller graph for this function:

◆ getChainsAndCycles()

void Graph::getChainsAndCycles	(	std::vector< std::deque< Node_SP >> &	chains,
		std::vector< std::deque< Node_SP >> &	cycles
	)

Identify all sequences of consecutive "links" (degree-2 nodes) in this graph.

Parameters

[out]	chains	Vector of deques of Nodes, where each identified "chain" will be recorded. A "chain" is a consecutive sequence of "links" whose endpoints are distinct.
[out]	cycles	Vector of deques of Nodes, where each identified "cycle" will be recorded. A "cycles" is a consecutive sequence of "links" that forms a closed loop.

◆ getConnComps()

vector< Graph_SP > Graph::getConnComps ( void ) const

Get the connected components of this Graph.

Note that the Nodes and Edges in the component Graphs will be the same objects as those in this Graph.

Returns: A vector of shared pointers to Graphs.

◆ getIEL()

double Graph::getIEL ( void )

Read the ideal edge length of this Graph.

Note: If the current value is zero (which is true of all new Graphs), the Graph will first auto-infer an ideal edge length equal to twice the average node dimension, store that value, and return it.

Warning: Once this method has been called, the Graph will NOT recompute its IEL on subsequent calls, even if Nodes have been added or taken away.

See also: Graph::recomputeIEL

Referenced by applyProjSeq(), buildUniqueBendPoints(), and dialect::doHOLA().

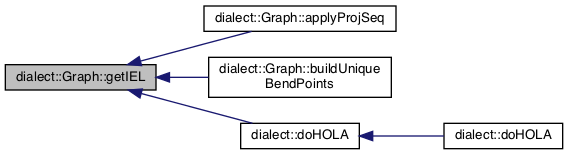

Here is the caller graph for this function:

◆ getMaxDegree()

unsigned Graph::getMaxDegree ( void ) const

Reports the maximum degree of any Node in this Graph.

The value is automatically maintained as you add or remove Nodes from the Graph.

Returns: Maximum degree of any Node in the Graph.

◆ getNode()

Node_SP Graph::getNode ( const id_type & id ) const

Look up a Node by ID.

Exceptions

out_of_range exception if there is no Node by the given ID.

Returns: The Node with the given ID, if present.

Referenced by addEdge(), cloneNode(), dialect::identifyRootNode(), dialect::peel(), and severAndRemoveNode().

Here is the caller graph for this function:

◆ hasEdge()

bool Graph::hasEdge ( const id_type & id ) const

Say whether this Graph has an Edge of the given ID.

Returns: boolean

◆ hasNode()

bool Graph::hasNode ( const id_type & id ) const

Say whether this Graph has a Node of the given ID.

Returns: boolean

Referenced by dialect::TreePlacement::insertTreeIntoGraph().

Here is the caller graph for this function:

◆ hasSameLayoutAs()

bool Graph::hasSameLayoutAs	(	const Graph &	other,
		double	tol = `0.001`,
		id_map *	idMap = `nullptr`
	)		const

Check whether this Graph has the same layout as another, up to a given tolerance.

Note: Checks Node positions and Edge routes, but not constraints.

Parameters

[in]	other	The other Graph.
[in]	tol	Tolerance for checking equality of floats.
[in]	idMap	Optional mapping from the IDs of the other Graph to the IDs of the corresponding Nodes of this Graph. If not provided, the correspondence is by the Nodes' external IDs.

References getEdgeBySrcIdTgtIdLookup(), getNodeLookup(), Avoid::Point::x, and Avoid::Point::y.

Here is the call graph for this function:

◆ makeFeasible()

void Graph::makeFeasible ( const ColaOptions & opts )

Make feasible. This means that, among those constraints that offer alternatives, we look for satisfiable alternatives in order of increasing cost (cost = separation violation). This is useful with nonoverlap constraints.

Parameters

[in] opts The usual ColaOptions.

Note: Simply uses the method by the same name in the cola::ConstrainedFDLayout class.

References dialect::ColaOptions::logger.

◆ operator=()

Graph & Graph::operator= ( const Graph other )

Copy-assignment operator.

Note: Pass-by-value is deliberate. See https://stackoverflow.com/a/3279550

References swap.

◆ popNodePositions()

bool Graph::popNodePositions ( void )

Restore node positions from internal stack.

Returns: true if positions were restored; false if stack was empty

References Avoid::Point::x, and Avoid::Point::y.

◆ project()

int Graph::project	(	const ColaOptions &	opts,
		vpsc::Dim	dim,
		int	accept = `0`
	)

Project onto cola constraints.

Parameters

[in] opts Options, including any additional constraints onto which to project (in addition to the Graph's existing SepMatrix).

Note: All options relating to edge length are ignored, since this is only a projection.

Parameters

[in]	dim	The dimension in which to project.
[in]	accept	Acceptance level. See doctext for cola::projectOntoCCs.

Returns: Error level. See cola::projectOntoCCs.

References dialect::ColaOptions::solidifyAlignedEdges.

Referenced by applyProjSeq(), and projectOntoSepCo().

Here is the caller graph for this function:

◆ projectOntoSepCo()

int Graph::projectOntoSepCo	(	const ColaOptions &	opts,
		SepCo_SP	sepco,
		int	accept = `0`
	)

Convenience method to project onto a single SepCo object. Apart from the SepCo, parameters and return value are as for the ordinary project method.

See also: Graph::project.

References dialect::ColaOptions::ccs, project(), and updateColaGraphRep().

Here is the call graph for this function:

◆ putInBasePosition()

void Graph::putInBasePosition ( void )

Put the Graph into a basic position useful for making unit test inputs. The Nodes are put in a row, all Edge routes are cleared, and all constraints are cleared.

The criteria are: (1) all nodes have distinct positions, and (2) the layout is a bad one. Condition (1) is needed so that Cola doesn't generate random starting positions.

References clearAllConstraints(), and clearAllRoutes().

Here is the call graph for this function:

◆ recomputeIEL()

double Graph::recomputeIEL ( void )

Recompute, store, and return the Graph's ideal edge length.

Note: As in the getIEL method, the value will be twice the average dimension of Nodes currently in the Graph.

See also: Graph::getIEL

◆ removeNode()

void Graph::removeNode ( const dialect::Node & node )

Remove a Node from this Graph.

Note: This method only removes the Node itself; it does not also sever the incident Edges.

Parameters

[in] node The Node to be removed from the Graph.

See also: severAndRemoveNode

References dialect::Node::id().

Referenced by severAndRemoveNode().

Here is the call graph for this function:

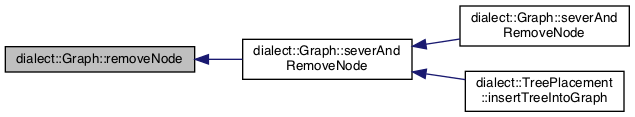

Here is the caller graph for this function:

◆ removeNodes()

void Graph::removeNodes ( const NodesById & nodes )

Remove several Nodes from this Graph.

Parameters

[in] nodes The Nodes to be removed from the Graph.

See also: removeNode

Referenced by dialect::NodeBuckets::severNodes().

Here is the caller graph for this function:

◆ rotate180()

void Graph::rotate180 ( void )

Rotate the layout – and the constraints – 180 degrees.

Note: Unlinke the 90-degree rotations, rotating 180 degrees can be viewed as a simple rigid transformation, and there is no reason to destress afterward.

See also: Graph::rotate90cw; Graph::rotate90acw

References dialect::EAST.

◆ rotate90acw()

void Graph::rotate90acw ( ColaOptions * opts = nullptr )

Rotate the layout – and the constraints – 90 degrees anticlockwise.

Parameters

[in] opts ColaOptions to control destressing operation after rotation. This is optional; pass nullptr if you do not want to destress.

Note: If any nodes are non-square, i.e. have aspect ratio different from 1:1, then destressing is recommended after a 90-degree rotation. The relationships between oblong nodes can change dramatically when rotating 90 degrees.

See also: Graph::rotate90cw; Graph::rotate180

References dialect::EAST.

◆ rotate90cw()

void Graph::rotate90cw ( ColaOptions * opts = nullptr )

Rotate the layout – and the constraints – 90 degrees clockwise.

Parameters

[in] opts ColaOptions to control destressing operation after rotation. This is optional; pass nullptr if you do not want to destress.

Note: If any nodes are non-square, i.e. have aspect ratio different from 1:1, then destressing is recommended after a 90-degree rotation. The relationships between oblong nodes can change dramatically when rotating 90 degrees.

See also: Graph::rotate90acw; Graph::rotate180

References dialect::EAST.

◆ route()

void Graph::route ( Avoid::RouterFlag routingType )

Do a libavoid connector routing on all Edges in the Graph.

Parameters

[in] routingType The type of routing you want (orthogonal or polyline).

References dialect::RoutingAdapter::addEdges(), dialect::RoutingAdapter::addNodes(), clearAllRoutes(), and dialect::RoutingAdapter::route().

Referenced by buildUniqueBendPoints().

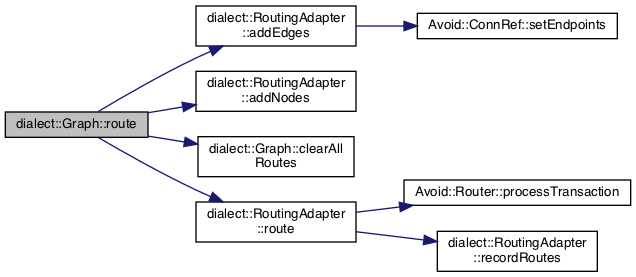

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCorrespondingConstraints()

void Graph::setCorrespondingConstraints ( Graph & H )

Set corresponding constraints in another Graph. This means that for each constraint between nodes of IDs id1 and id2 in this Graph's SepMatrix, we set that constraint in the other Graph if and only if it too contains Nodes of IDs id1 and id2.

Parameters

[out] H The other Graph.

◆ setPosesInCorrespNodes()

void Graph::setPosesInCorrespNodes ( Graph & H )

Update positions of Nodes in a given Graph to equal those of the corresponding Nodes (same ID) in this Graph.

Parameters

[out] H The Graph whose Node positions are to be updated.

◆ setRoutesInCorrespEdges()

void Graph::setRoutesInCorrespEdges	(	Graph &	H,
		bool	directed = `false`
	)

Update routes of Edges in a given Graph to equal those of the corresponding Edges (same source and target) in this Graph.

Parameters

[out]	H	The Graph whose Edge routes are to be updated.
[in]	directed	Set true if Edges are to be understood as directed, i.e. if in order to match the Edges have to have the same source and the same target. Otherwise only the set {source ID, target ID} has to be the same. Default: false (i.e. undirected edges).

◆ severAndRemoveNode() [1/2]

void Graph::severAndRemoveNode ( const dialect::Node & node )

Convenience method to completely remove a Node from the Graph.

See also: severNode; removeNode

References removeNode(), and severNode().

Referenced by dialect::TreePlacement::insertTreeIntoGraph(), and severAndRemoveNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ severAndRemoveNode() [2/2]

void Graph::severAndRemoveNode ( id_type nodeID )

Convenience method to completely remove a Node from the Graph.

See also: severNode; removeNode

References getNode(), and severAndRemoveNode().

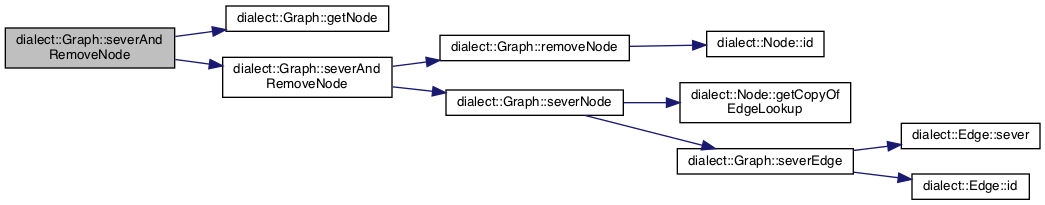

Here is the call graph for this function:

◆ severEdge()

void Graph::severEdge ( dialect::Edge & edge )

Sever an Edge in this Graph.

The Edge is removed from the Graph, and from both of its endpoint Nodes as well.

Parameters

[in] edge The Edge to be severed from the Graph.

References dialect::Edge::id(), and dialect::Edge::sever().

Referenced by cloneNode(), severNode(), and severNodeNotingNeighbours().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ severNode()

void Graph::severNode ( const dialect::Node & node )

Sever all the Edges incident to a Node in this Graph.

Note: This method only cuts the incident Edges; it does /not/ also remove the Node itself from the Graph.

Parameters

[in] node The Node whose Edges are to be severed.

See also: severAndRemoveNode

References dialect::Node::getCopyOfEdgeLookup(), and severEdge().

Referenced by severAndRemoveNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ severNodeNotingNeighbours()

vector< Node_SP > Graph::severNodeNotingNeighbours ( const dialect::Node & node )

Like severNode but also returns a vector of all Nodes that were neighbours before severing.

See also: severNode

References dialect::Node::getEdgeLookup(), and severEdge().

Referenced by dialect::NodeBuckets::severNodes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ solidifyAlignedEdges()

void Graph::solidifyAlignedEdges	(	vpsc::Dim	dim,
		const ColaOptions &	opts
	)

Add Nodes to represent aligned Edges in one dimension, constraining them to stay aligned.

Parameters

[in]	dim	Solidify only those aligned Edges whose variable coordinate is in this dimension. Thus, horizontally aligned edges for XDIM; vertically aligned for YDIM.
[in]	opts	Here you can set Edge exemptions, i.e. a set of Edges that should not be solidified.

References dialect::Node::allocate(), vpsc::HORIZONTAL, Avoid::Point::id, dialect::ColaOptions::solidEdgeExemptions, vpsc::VERTICAL, Avoid::Point::x, and Avoid::Point::y.

Here is the call graph for this function:

◆ translate()

void Graph::translate	(	double	dx,
		double	dy
	)

Translate the entire layout by a given amount in each dimension.

Parameters

[in]	dx	The amount by which to translate in the x-dimension.
[in]	dy	The amount by which to translate in the y-dimension.

◆ updateColaGraphRep()

ColaGraphRep & Graph::updateColaGraphRep ( void )

Refresh, as needed, the data structures necessary for applying the methods of libcola to this Graph.

Warning: If Nodes have been added to or removed from the Graph since the last time this method was called, the old Rectangles will be deleted.

Clients are therefore advised to utilise methods like Graph::destress instead of creating their own instances of ConstrainedFDLayout. At the least, they must not reuse layout objects that were created before adding or removing Nodes from the Graph (which makes sense anyway).

Returns: A reference to the (updated) ColaGraphRep.

References dialect::ColaGraphRep::id2ix, and dialect::ColaGraphRep::ix2id.

Referenced by applyProjSeq(), and projectOntoSepCo().

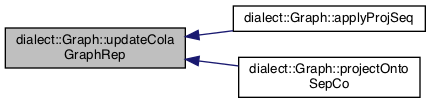

Here is the caller graph for this function:

◆ updateNodesFromRects()

void Graph::updateNodesFromRects	(	bool	xAxis = `true`,
		bool	yAxis = `true`
	)

For use with various layout actions, this method asks the Graph to update Node positions based on its internal vpsc Rectangles that were used in the layout operation.

Parameters

[in]	xAxis	Set true iff the x-coordinates of the nodes should be updated.
[in]	yAxis	Set true iff the y-coordinates of the nodes should be updated.

References dialect::ColaGraphRep::id2ix.

◆ writeId2Ix()

string Graph::writeId2Ix ( void ) const

Write the Node ID –> Rectangle Index map. Useful for debugging.

Returns: String representation of the map.

References dialect::ColaGraphRep::id2ix.

◆ writeIx2Id()

string Graph::writeIx2Id ( void ) const

Write the Rectangle Index –> Node ID map. Useful for debugging.

Returns: String representation of the map.

References dialect::ColaGraphRep::ix2id.

◆ writeSvg()

string Graph::writeSvg ( bool useExternalIds = false ) const

Write SVG to represent this Graph.

Parameters

[in] useExternalIds When a Graph is built from TGLF its Nodes store the IDs that were used there. Set true if you want these same IDs to be written out as well. Otherwise the internal unique Node IDs are used.

Returns: A string containing the SVG.

References getBoundingBox(), dialect::BoundingBox::h(), dialect::string_format(), and dialect::BoundingBox::w().

Here is the call graph for this function:

◆ writeTglf()

string Graph::writeTglf ( bool useExternalIds = false ) const

Write TGLF to represent this Graph.

Parameters

[in] useExternalIds When a Graph is built from TGLF its Nodes store the IDs that were used there. Set true if you want these same IDs to be written out as well. Otherwise the internal unique Node IDs are used.

Returns: A string containing the TGLF.

References Avoid::Point::x, and Avoid::Point::y.

The documentation for this class was generated from the following files:

libdialect/graphs.h
libdialect/graphs.cpp

Public Member Functions

Friends

Detailed Description

Member Function Documentation

◆ addBendlessSubnetworkToRoutingAdapter()

◆ addEdge() [1/3]

◆ addEdge() [2/3]

◆ addEdge() [3/3]

◆ addNode() [1/4]

◆ addNode() [2/4]

◆ addNode() [3/4]

◆ addNode() [4/4]

◆ applyProjSeq()

◆ buildRootCluster()

◆ buildUniqueBendPoints()

◆ cloneNode()

◆ computeAvgNodeDim()

◆ destress()

◆ getBoundingBox()

◆ getChainsAndCycles()

◆ getConnComps()

◆ getIEL()

◆ getMaxDegree()

◆ getNode()

◆ hasEdge()

◆ hasNode()

◆ hasSameLayoutAs()

◆ makeFeasible()

◆ operator=()

◆ popNodePositions()

◆ project()

◆ projectOntoSepCo()

◆ putInBasePosition()

◆ recomputeIEL()

◆ removeNode()

◆ removeNodes()

◆ rotate180()

◆ rotate90acw()

◆ rotate90cw()

◆ route()

◆ setCorrespondingConstraints()

◆ setPosesInCorrespNodes()

◆ setRoutesInCorrespEdges()

◆ severAndRemoveNode() [1/2]

◆ severAndRemoveNode() [2/2]

◆ severEdge()

◆ severNode()

◆ severNodeNotingNeighbours()

◆ solidifyAlignedEdges()

◆ translate()

◆ updateColaGraphRep()

◆ updateNodesFromRects()

◆ writeId2Ix()

◆ writeIx2Id()

◆ writeSvg()

◆ writeTglf()
