dialect::RoutingAdapter Struct Reference

Adapter to easily apply libavoid::Routers to libdialect::Graphs. More...

#include <routing.h>

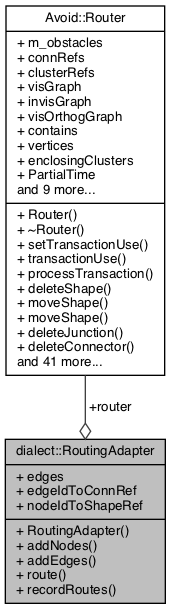

Collaboration diagram for dialect::RoutingAdapter:

Public Member Functions
	RoutingAdapter (Avoid::RouterFlag flag)
	Standard Constructor. More...
void	addNodes (const NodesById &nodes)
	Add nodes. More...
void	addEdges (const EdgesById &edges, const EdgeConnDirsById *connDirs=nullptr)
	Add edges. More...
void	route (RouteProcessing processing=RouteProcessing::RECORD)
	Do the routing. More...
void	recordRoutes (bool refine=false)
	Record the routes in the Edges. More...

Public Attributes
Avoid::Router	router
	The Router.
EdgesById	edges
	Lookup for Edges.
std::map< id_type, Avoid::ConnRef * >	edgeIdToConnRef
	Lookup an Edge's associated ConnRef* by the Edge's ID.
std::map< id_type, Avoid::ShapeRef * >	nodeIdToShapeRef
	Lookup a Node's associated ShapeRef* by the Node's ID.

Detailed Description

Adapter to easily apply libavoid::Routers to libdialect::Graphs.

Constructor & Destructor Documentation

RoutingAdapter()

dialect::RoutingAdapter::RoutingAdapter ( Avoid::RouterFlag  flag )

inline

Standard Constructor.

Parameters

[in]

flag

A RouterFlag to say what kind of routing is desired (polyline or orthogonal).

Member Function Documentation

addEdges()

void RoutingAdapter::addEdges	(	const EdgesById &	edges,
		const EdgeConnDirsById *	connDirs = nullptr
	)

Add edges.

Parameters

[in]	edges	The Edges to be added, given by an EdgesById mapping.
[in]	connDirs	Optional specification of the allowed connection directions at the source and target ends of the Edges. Specifically, an Edge's ID should map to a pair (srcConnDirs, tgtConnDirs) giving the allowed directions for source and target respectively. For any Edge whose ID is not present in the mapping, all connection directions are allowed at both ends.

References edgeIdToConnRef, edges, router, and Avoid::ConnRef::setEndpoints().

Referenced by dialect::Graph::addBendlessSubnetworkToRoutingAdapter(), dialect::LeaflessOrthoRouter::LeaflessOrthoRouter(), and dialect::Graph::route().

Here is the call graph for this function:

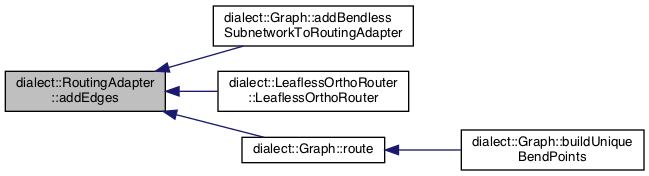

Here is the caller graph for this function:

addNodes()

void RoutingAdapter::addNodes

(

const NodesById &

nodes

)

Add nodes.

Parameters

[in]

nodes

The Nodes to be added, given by a NodesById mapping.

References nodeIdToShapeRef, and router.

Referenced by dialect::Graph::addBendlessSubnetworkToRoutingAdapter(), dialect::LeaflessOrthoRouter::LeaflessOrthoRouter(), and dialect::Graph::route().

Here is the caller graph for this function:

recordRoutes()

void RoutingAdapter::recordRoutes

(

bool

refine = false

)

Record the routes in the Edges.

Parameters

[in]

refine

Say whether the routes should be refined before recording.

References edgeIdToConnRef, edges, Avoid::Polygon::ps, Avoid::Point::x, and Avoid::Point::y.

Referenced by route(), and dialect::LeaflessOrthoRouter::route().

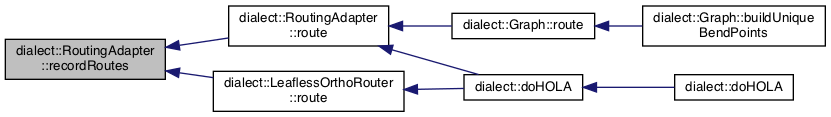

Here is the caller graph for this function:

route()

void RoutingAdapter::route

(

RouteProcessing

processing = RouteProcessing::RECORD

)

Do the routing.

Parameters

[in]

processing

Set to the desired level of route processing. Default: routes are recorded in Edges, without any post-processing.

See also

RouteProcessing enum.

References Avoid::Router::processTransaction(), dialect::RECORD, recordRoutes(), dialect::REFINE_AND_RECORD, and router.

Referenced by dialect::doHOLA(), and dialect::Graph::route().

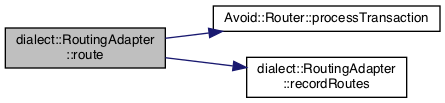

Here is the call graph for this function:

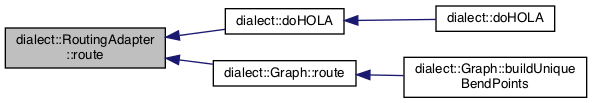

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following files:

• libdialect/routing.h
• libdialect/routing.cpp
